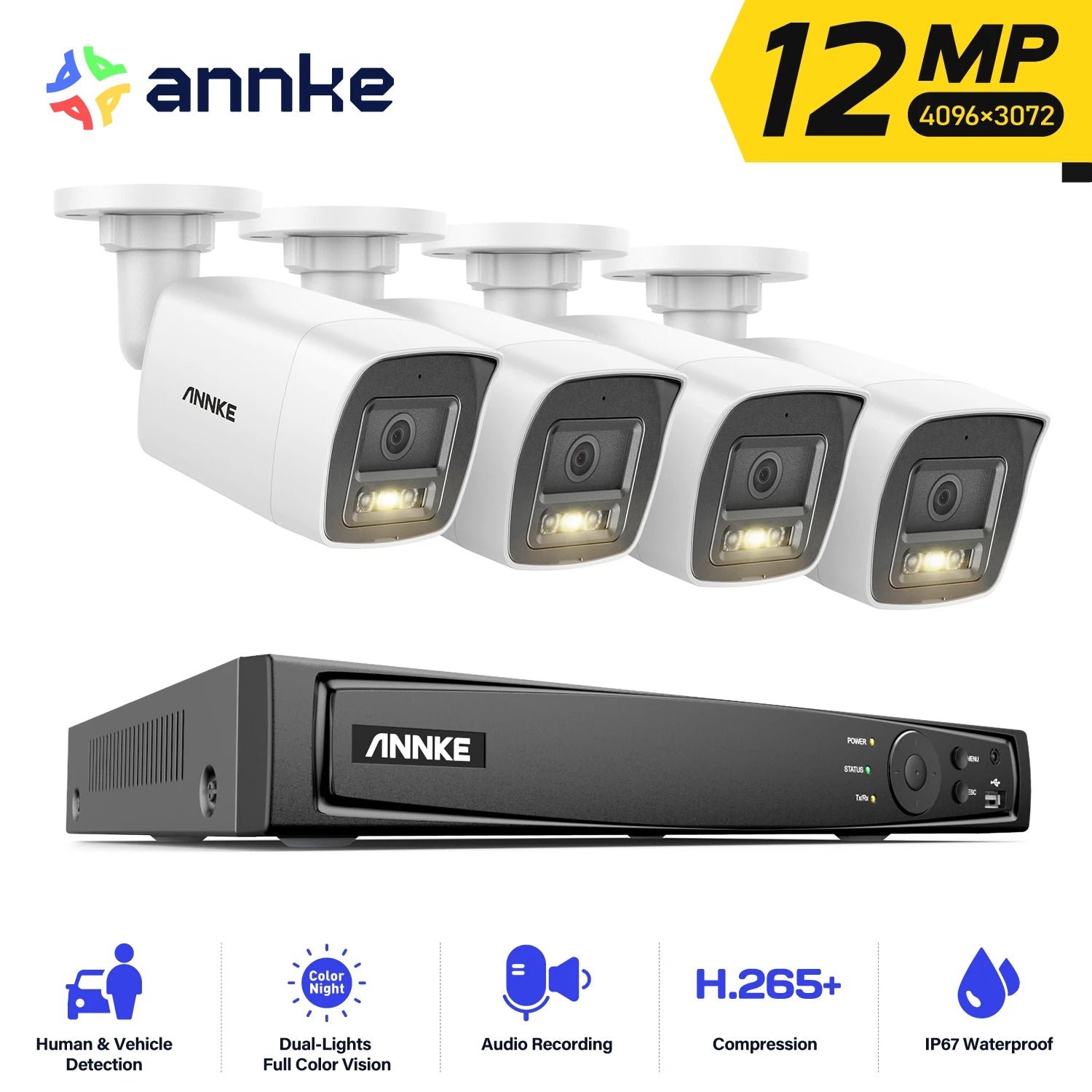

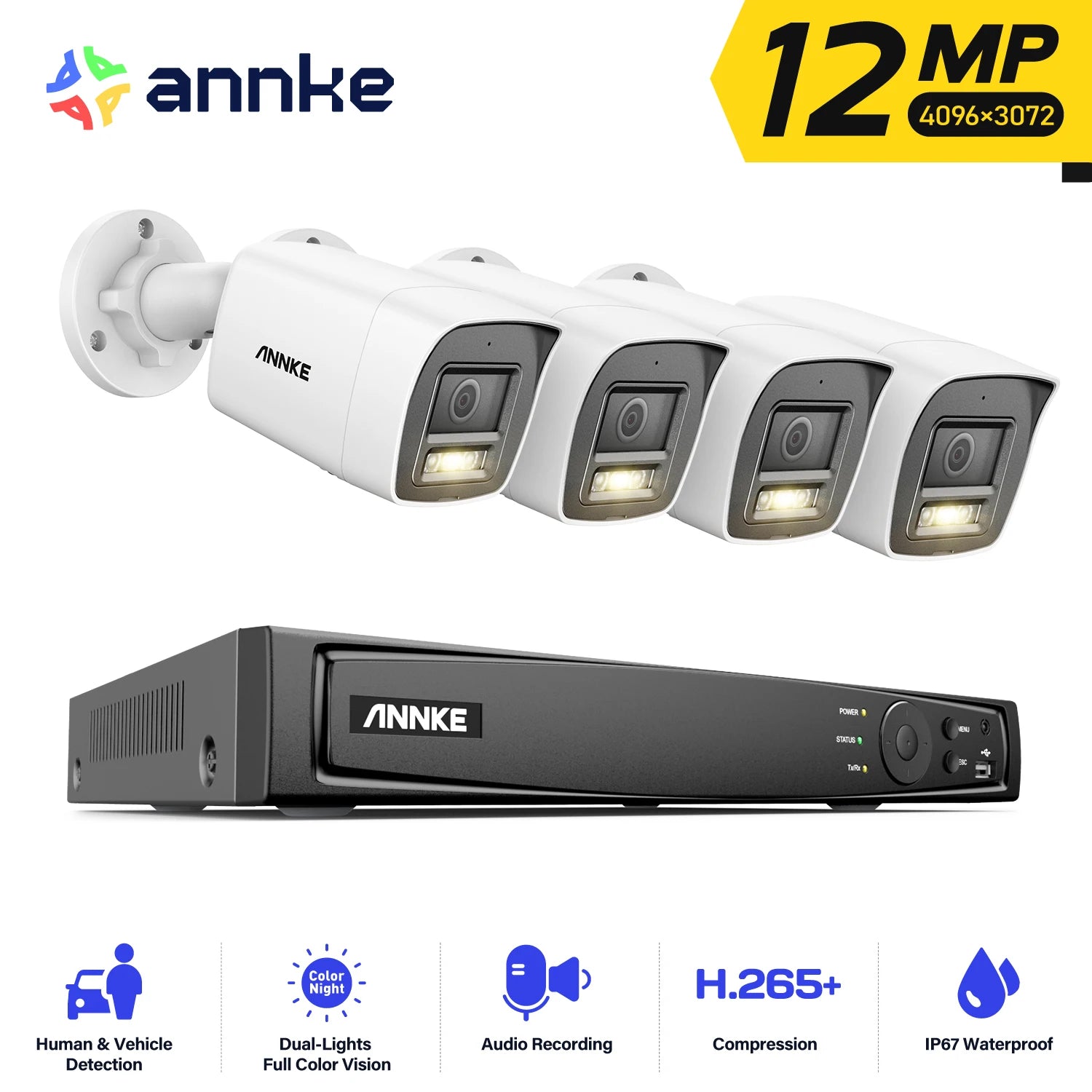

ANNKE H1200 12MP Dual Light Outdoor Surveillance Camera System 2.8MM Lens Person/Vehicle Detection 265+ 12MP PoE Camera Kits
ANNKE H1200 12MP Dual Light Outdoor Surveillance Camera System 2.8MM Lens Person/Vehicle Detection 265+ 12MP PoE Camera Kits
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANNKE
Cable Length: 30m,18m
Certification: CE
High-concerned chemical: None
Model Number: N98PBK-94DD
Origin: Mainland China
PCS of Camera: 4PCS
TV System: NTSC,PAL
Type 1: CCTV Video Security Kits
Type 2: security system camera kit
Type 3: Smart Dual Light Camera Kits
Type 4: POE Camera Outdoor
Video Input: 8 Channel
NVR Features:

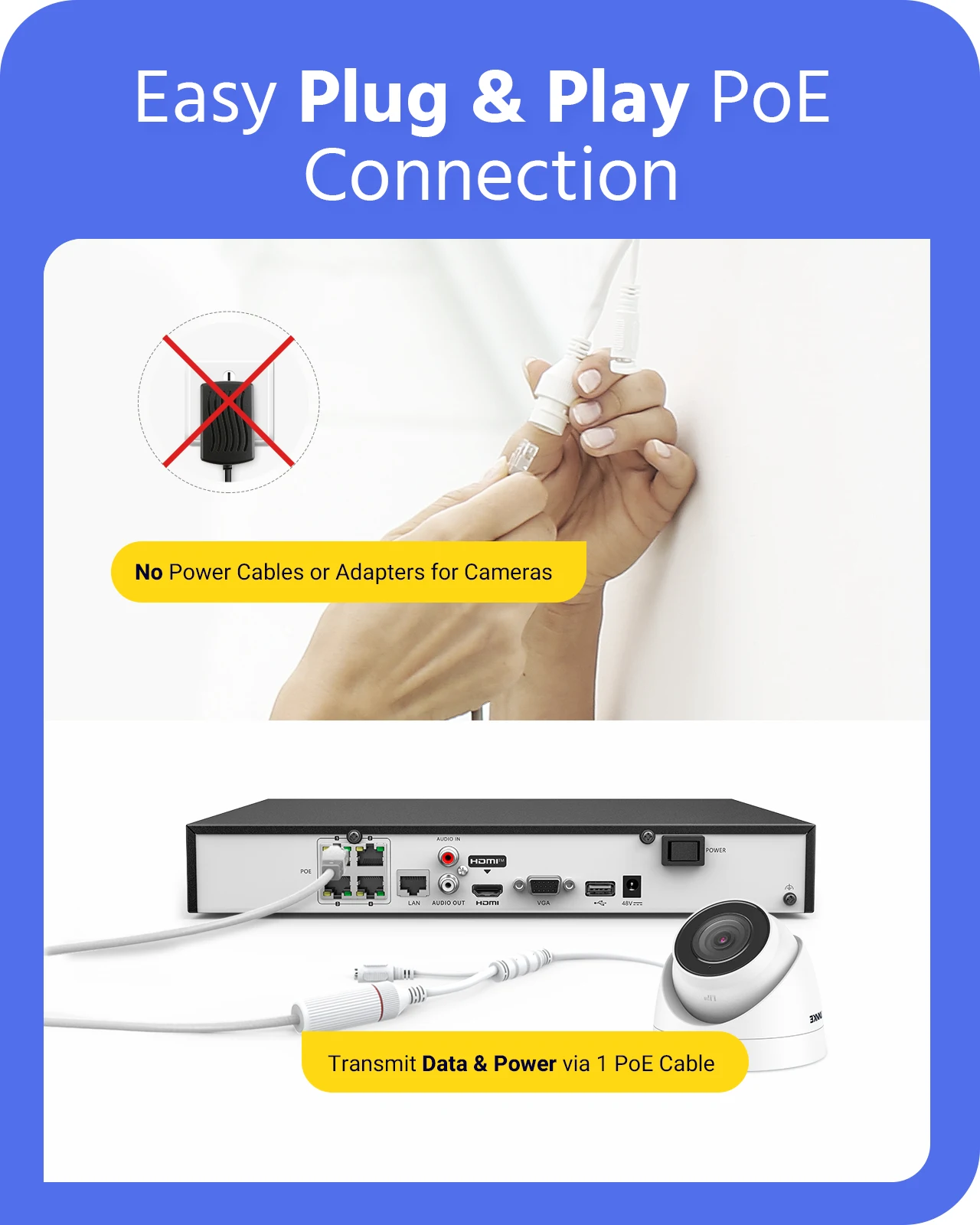

· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection
Camera Features:
★ 12MP smart dual light bullet network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security

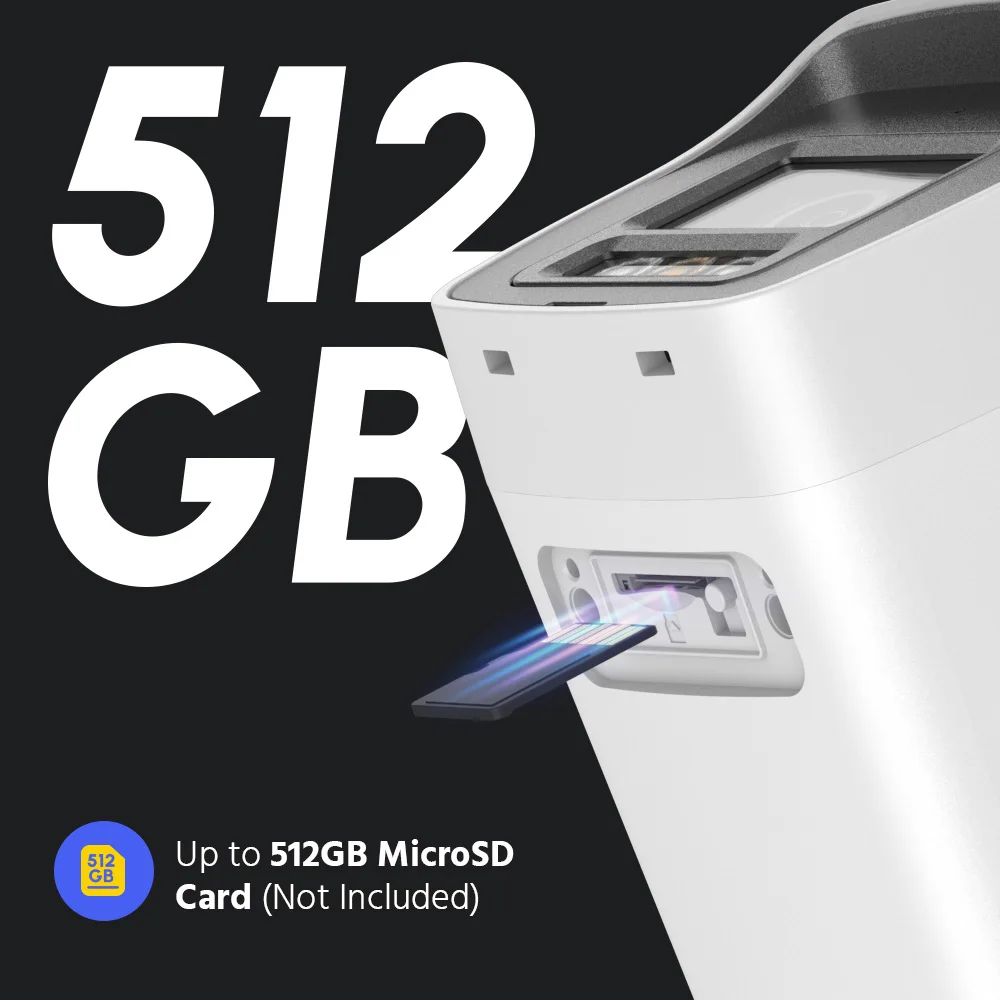

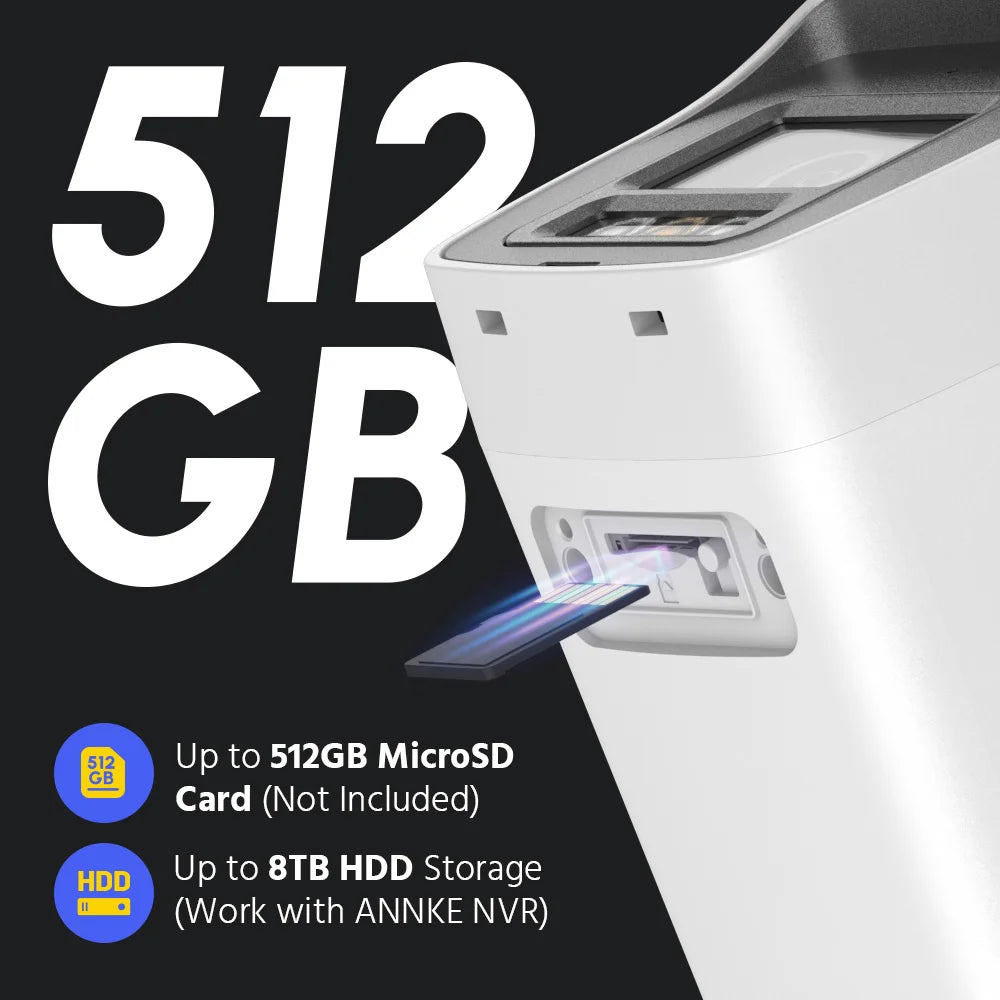

★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
12MP Visual Experience: More Detailed Images
Cutting-edge 12MP security camera, delivering unrivaled clarity with a staggering 4096 x 3072 resolution. See every detail in vivid precision, ensuring nothing escapes your watchful eye. The 2.8mm@F1.6 lens guarantees impeccable low-light performance, capturing crisp, well-defined images even in challenging conditions.
Elevate Security Precision: Deep Learning Algorithms
With Motion Detection 2.0, rest assured that you'll only receive alerts for relevant activity – eliminating 99% of unwanted notifications caused by animals, weather elements, or non-essential objects. Our system intelligently focuses on human and vehicle shapes by default, drastically reducing false alarms.
Listen-In Audio
The built-in noise-cancelling microphone can filter the environment noise automatically.

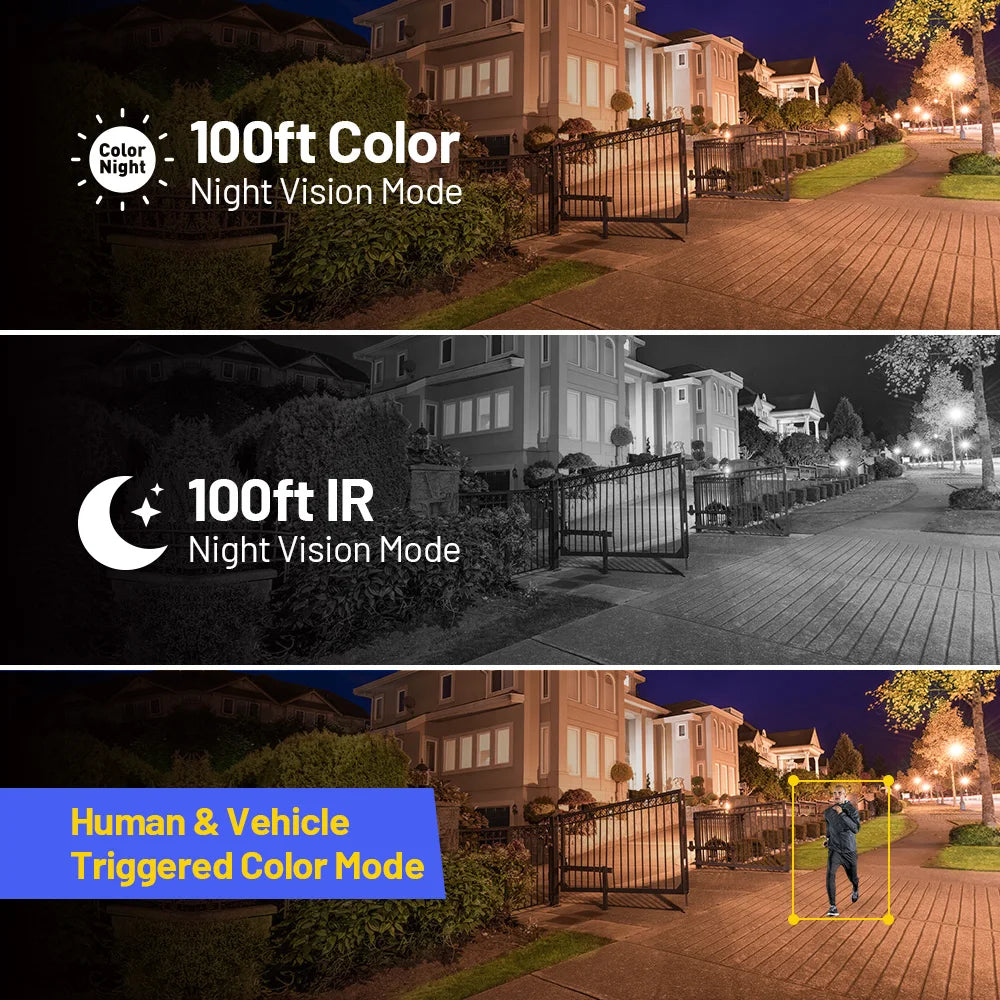

Optimize Your Security with Flexible Lighting Option
You can select the lighting mode that best suits your requirements: 24/7 color, IR or smart dual-light. In smart dual-light mode, the camera maintains infrared illumination until an event triggers color imaging to capture critical details. White light and infrared fill light is up to 30 m distance for bright night imaging.

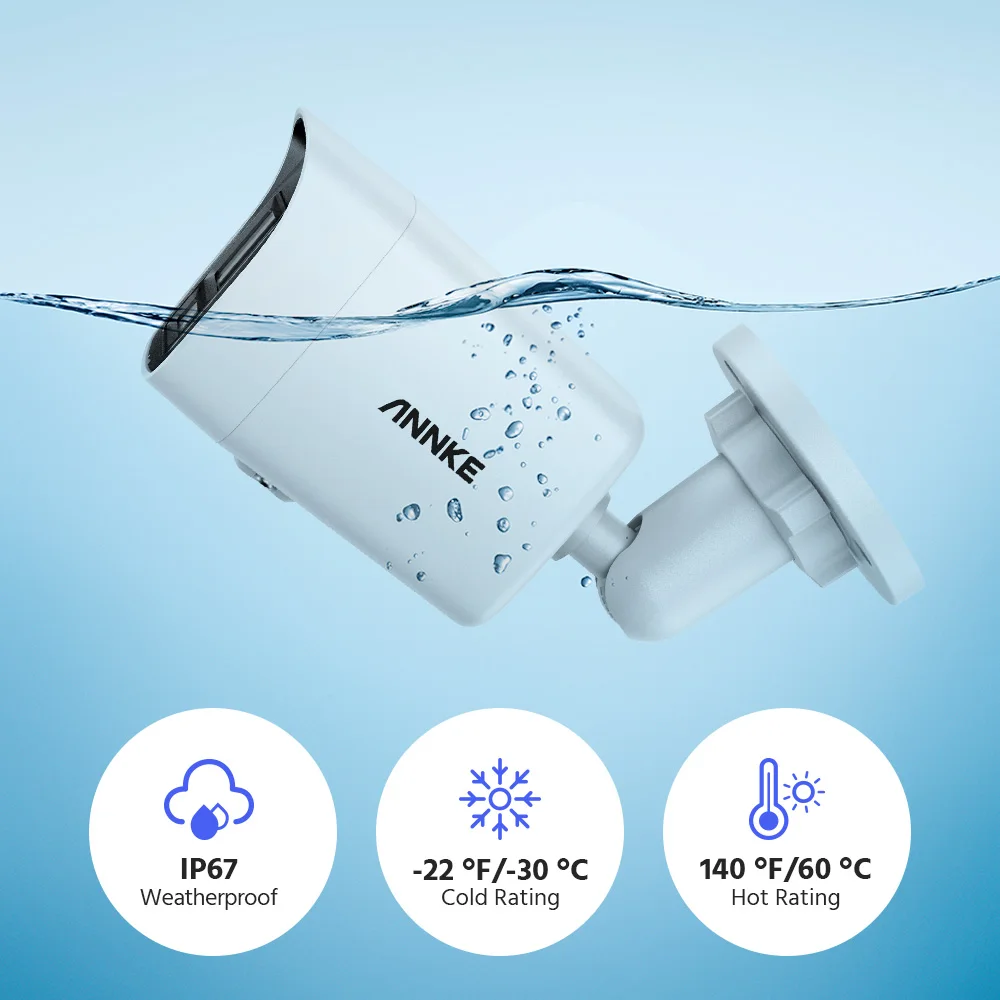

IP67 Weatherproof – Built for Extreme Weather
IP67 rated, this weatherproof security cameras can endure anything from torrential downpours to freezing snowstorms. Not only does it ensure protection against ingress of dust and moisture, it can also withstand extreme cold or heat, continuing to operate in temperatures as low as –30 °C / –22 °F and as high as 60 °C /
IP Camera | ||
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max resolution |
4096*3072(12MP) |
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./285 g |
|

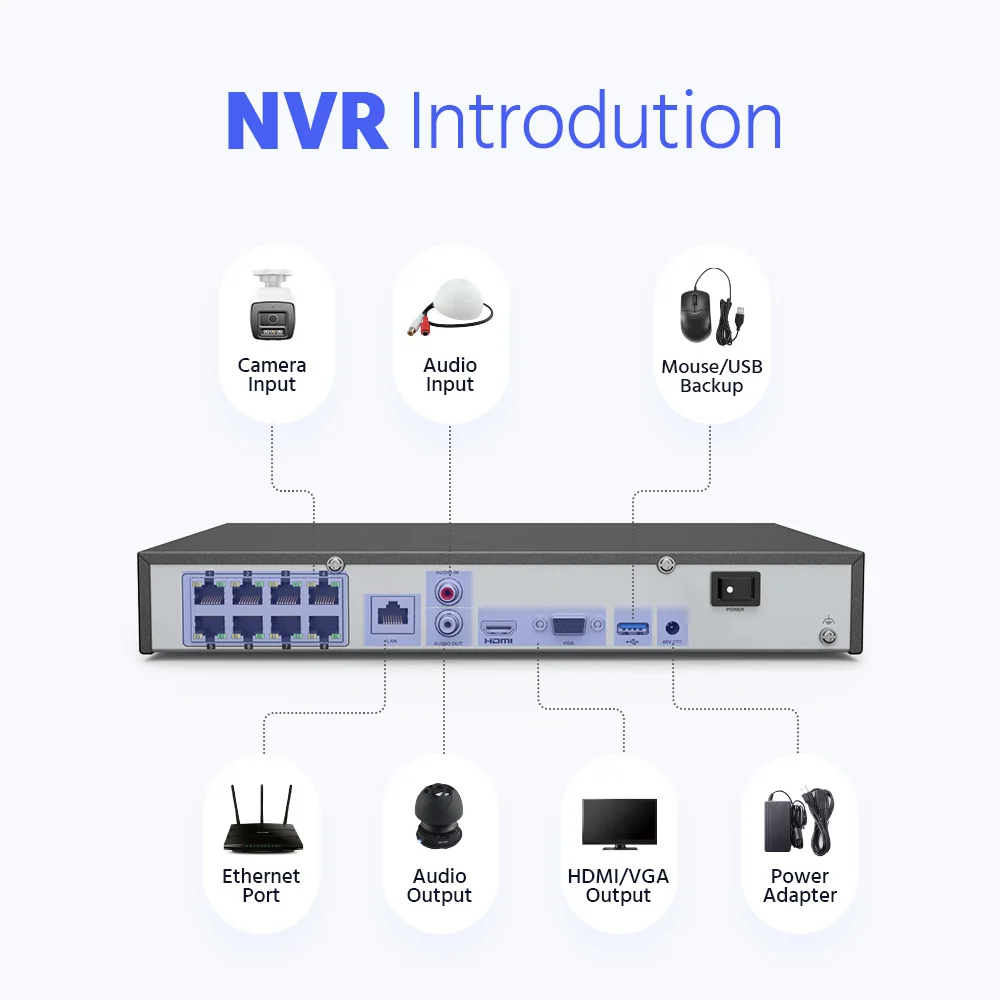

NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
